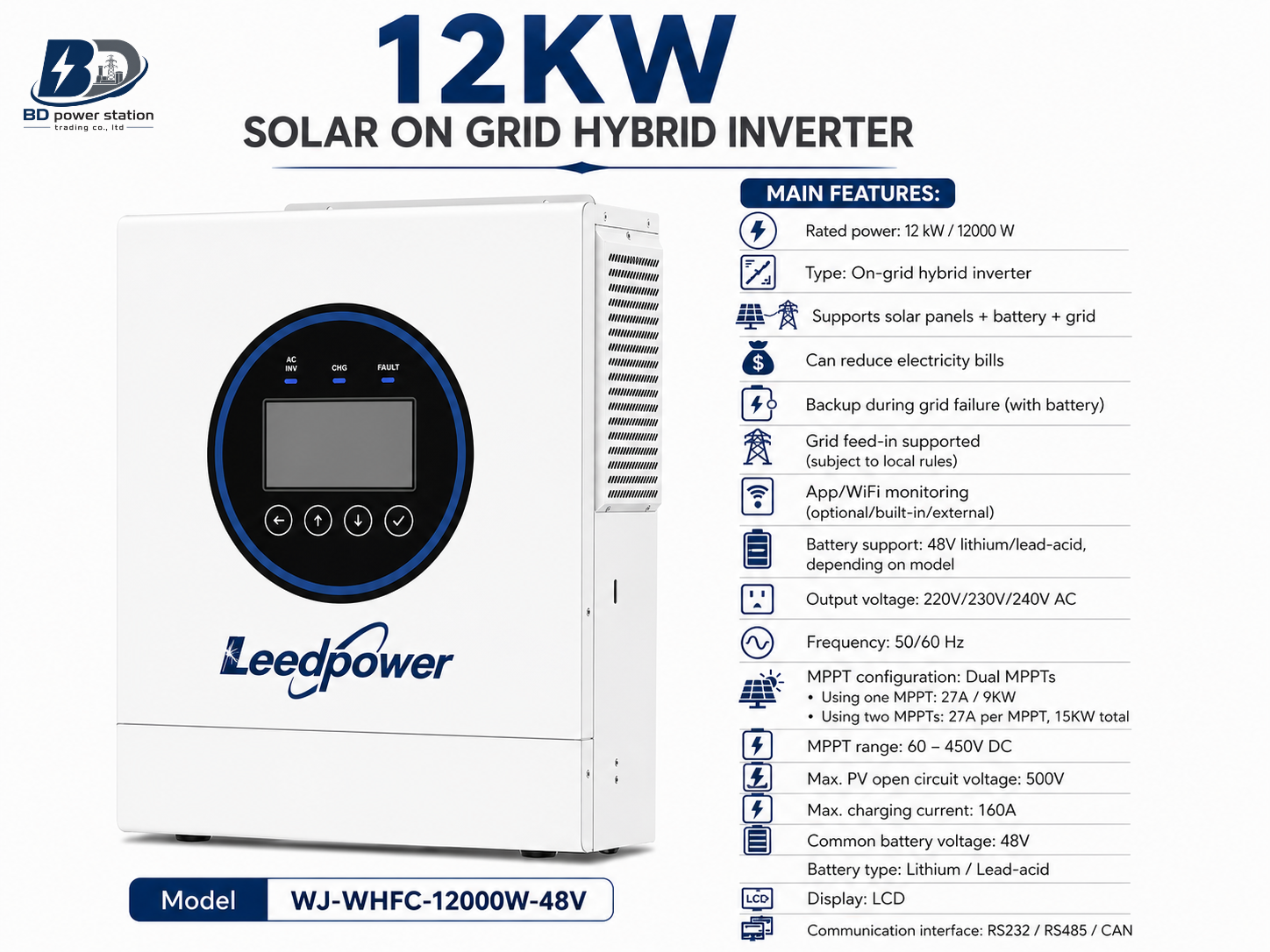

12KW Hybrid Solar Inverter in Bangladesh (On-Grid System)

12KW Hybrid Solar Inverter – High Power Solar Solution in Bangladesh

The 12KW hybrid solar inverter is a powerful and efficient solution for large homes, offices, and commercial solar systems in Bangladesh. Designed for hybrid operation, it seamlessly integrates solar panels, battery storage, and grid power to ensure uninterrupted electricity and optimal energy savings.

If you're searching for a reliable solar inverter price in Bangladesh, this 12KW model offers strong performance, advanced MPPT technology, and long-term durability.

Key Features

• Ideal for large homes, offices, and small industries
• Supports grid + battery + solar hybrid system
• Advanced Dual MPPT technology for maximum solar efficiency
• High power output suitable for heavy load usage
• Smart energy management and load control
• Easy installation and user-friendly operation
• WiFi monitoring support (optional / built-in)

AC Input Specifications

• Rated Voltage: 208 / 220 / 230 / 240 VAC (L + N + PE)
• Voltage Range:
  • 90–280V (APP / Generator Mode)
  • 170–264V (UPS Mode)
• Frequency: 50 / 60 Hz (Auto Adaptive)

Solar Charger (PV Input)

• Charging Technology: MPPT / Dual MPPT
• PV Capacity (12kW Model):
  • Single MPPT: 27A / 9kW
  • Dual MPPT: 27A per MPPT (Total 15kW)
• Voltage Range: 60 – 450V DC
• Max Open Circuit Voltage: 500V
• Max Charging Current: 160A

Battery Specifications

• Rated Voltage: 48V
• Battery Compatibility: Lithium / Lead-acid

Battery Performance (12kW Model)

• Charging Current: 160A
• Discharging Current: 220A

Interface & Monitoring

• Display: 5-inch LCD screen
• Communication Ports: RS232 / RS485 / CAN
• Monitoring: WiFi (optional / built-in / external)

General Specifications

• Protection Rating: IP21
• Operating Temperature: -10°C to 60°C
• Storage Temperature: -15°C to 60°C
• Humidity: 5% – 95% (Non-condensing)
• Max Altitude: 4000m (Derating above 2000m)

Physical Specifications (12kW Model)

• Weight: 15 kg
• Dimensions: 495 × 425 × 120 mm

Applications

• Residential solar systems (large homes)
• Commercial and office backup power
• Hybrid solar systems (off-grid + grid-tied)
• High-load equipment operation
• Energy cost reduction and smart load management

Warranty Policy

We provide a 3-year limited warranty on all products,
demonstrating our commitment to quality, reliability, and customer satisfaction.

Year 1 – Replacement Warranty
If any manufacturing defect arises within the first year
from the date of purchase, the product will be replaced at no additional cost.

Years 2 & 3 – Repair Warranty
During the second and third years, the warranty covers repair services,
in accordance with our applicable terms and conditions.

At present, we do not have an authorized service center in Bangladesh.
This warranty structure has been designed to ensure efficient and practical customer support under current conditions.

Once our authorized service network is established in Bangladesh,
this policy will be upgraded to a fully service-based warranty model,
aligned with standard industry practices.
