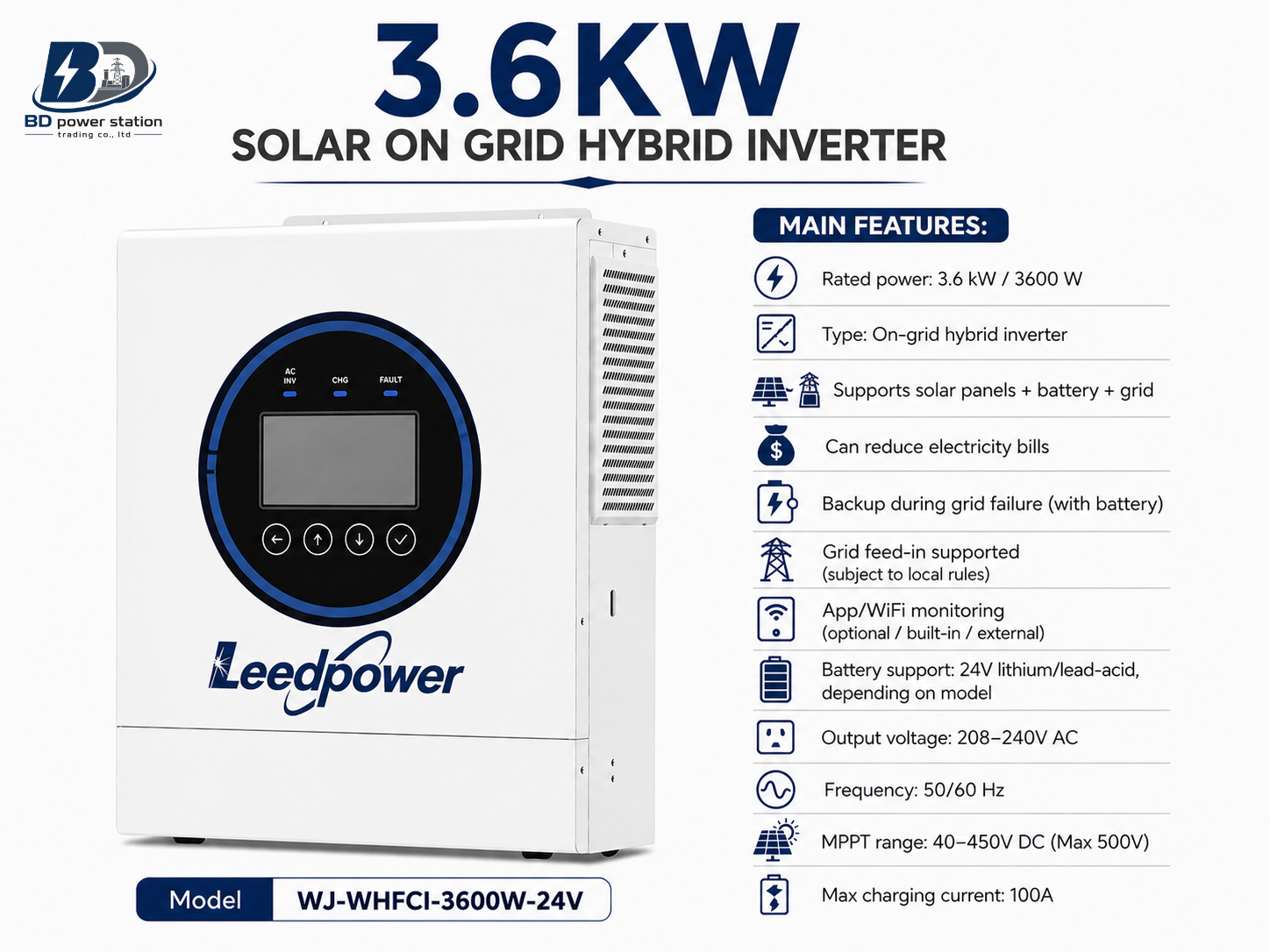

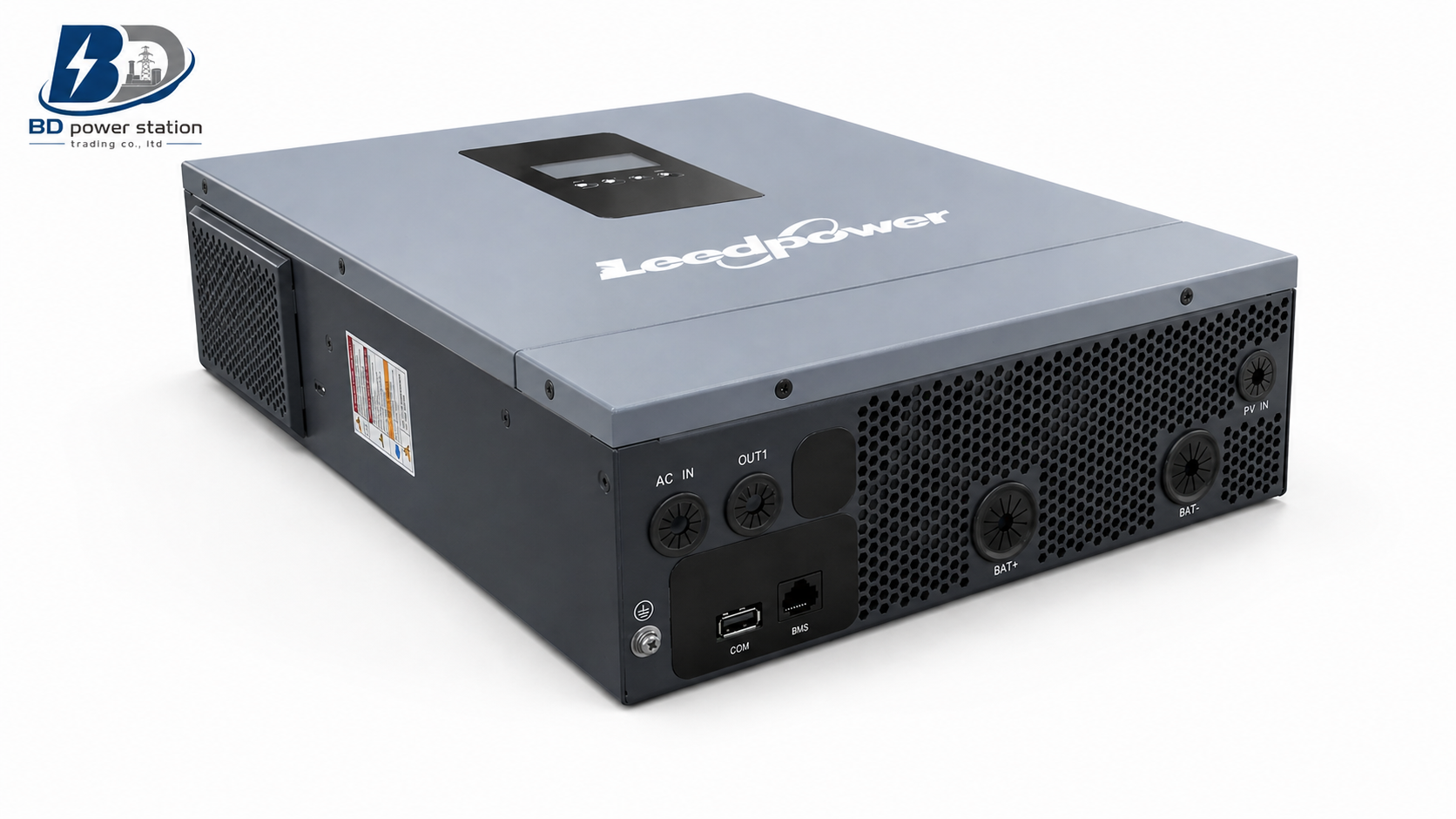

3.6KW Hybrid Solar Inverter in Bangladesh (On-Grid System)

3.6KW Hybrid Solar Inverter – Smart Solar Power Solution in Bangladesh

The 3.6KW hybrid solar inverter is an efficient and cost-effective solution for small homes and businesses in Bangladesh. It intelligently combines solar energy, battery storage, and grid power to ensure continuous electricity and reduced energy costs.

If you’re searching for a reliable solar inverter price in Bangladesh, this 3.6KW model offers excellent performance, compact design, and flexible energy management.

Key Features

• Ideal for small homes and light commercial use
• Supports solar + battery + grid hybrid system
• Advanced MPPT solar charging technology
• Stable output with pure sine wave
• Fast switching (UPS mode support)
• Compact design with easy installation
• Optional WiFi monitoring system

AC Input Specifications

• Rated Voltage: 208 / 220 / 230 / 240 VAC (L + N + PE)
• Voltage Range:
  • 90–280V (APP / Generator Mode)
  • 170–264V (UPS Mode)
• Frequency: 50 / 60 Hz (Auto Adaptive)

AC Output Specifications (3.6kW Model)

• Rated Power: 3.6 kW
• Surge Power: 7.2 kVA
• Voltage: 208 / 220 / 230 / 240V
• Power Factor: 1
• Frequency: 50 / 60 Hz
• Switch Time: 10ms (UPS) / 20ms (GEN)
• Waveform: Pure Sine Wave

Solar Charger (PV Input)

• Charging Technology: MPPT
• PV Capacity: 18A / 5000W
• Voltage Range: 40 – 450V DC
• Max Open Circuit Voltage: 500V
• Max Charging Current: 100A

Battery Specifications

• Rated Voltage: 24V
• Battery Types Supported: Lithium, Lead-acid, Gel

Battery Performance (3.6kW Model)

• PV Charging Current: 100A
• AC Charging Current: 100A
• Maximum Charging Current: 100A

Interface & Monitoring

• Display: LCD screen
• Communication Ports: USB / RS485 / CAN (BMS supported)
• WiFi Monitoring: Optional

General Specifications

• Protection Rating: IP21
• Operating Temperature: -10°C to 60°C
• Storage Temperature: -15°C to 60°C
• Humidity: 5% – 95% (Non-condensing)
• Max Altitude: 4000m (Derating above 2000m)

Physical Specifications (3.6kW Model)

• Weight: 6.2 kg
• Dimensions: 420 × 284 × 94 mm

Applications

• Home solar systems in Bangladesh
• Backup power for small businesses
• Hybrid solar setups (off-grid + grid-tied)
• Load management and electricity cost saving

Warranty Policy

We provide a 3-year limited warranty on all products, demonstrating our commitment to quality, reliability, and customer satisfaction.

Year 1 – Replacement Warranty
If any manufacturing defect arises within the first year from the date of purchase, the product will be replaced at no additional cost.

Years 2 & 3 – Repair Warranty
During the second and third years, the warranty covers repair services, in accordance with our applicable terms and conditions.

At present, we do not have an authorized service center in Bangladesh. This warranty structure has been designed to ensure efficient and practical customer support under current conditions.

Once our authorized service network is established in Bangladesh, this policy will be upgraded to a fully service-based warranty model, aligned with standard industry practices.
